荒料切割設備

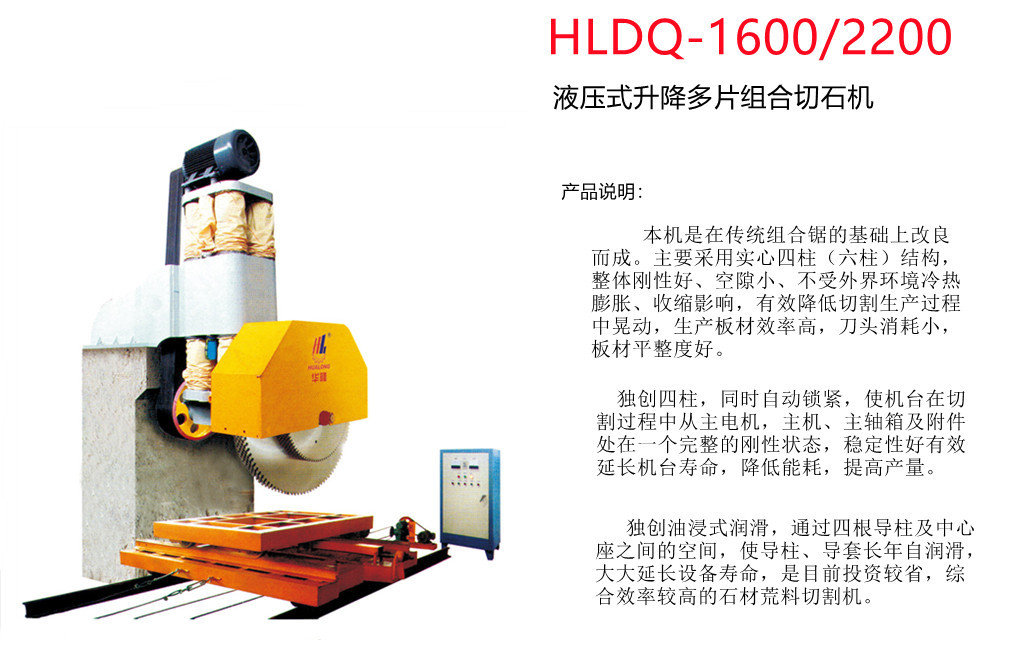

Hydraulic Mulit-blade Stone Cutting MachineHLDQ-1600/2200液壓式升降多片組合切石機

領跑智能製造新“石”代

Hydraulic Mulit-blade Stone Cutting MachineHLDQ-1600/2200液壓式升降多片組合切石機

所屬品牌:www.69韩国日本

所屬類別:荒料切割設備

想了解更多相關產品信息,請聯係我們!

0594-2197723
hualongmc@163.com
我要谘詢
  • 產品說明
  • 技術參數

采購可留言電話號碼,我們會與您聯係! 點擊進入1688查看更多產品

Purchase please leave a message phones and email, we will contact you!

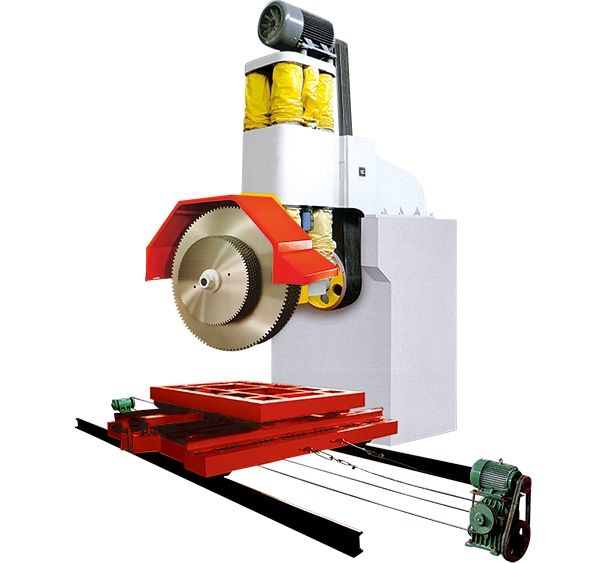

液壓式單臂多片鋸 HLDQ-1600 適用於切割石塊,如花崗岩、大理石等。

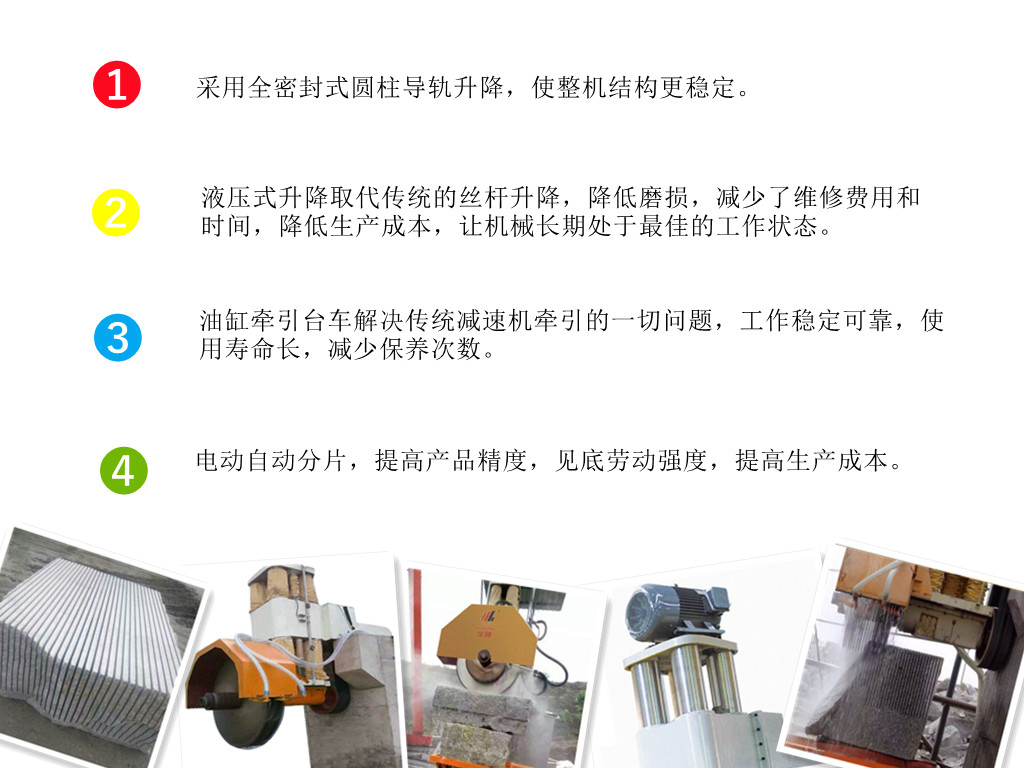

主要特點
(1)采用全密封的四缸導向軌進行升降操作,這使得整個結構更加穩固,減少了磨損,並能長時間保持機器處於最佳工作狀態。
(2) 電動自動切片分離技術提高了產品的精度,降低了勞動強度,並提高了生產效率。

Hydraulic Lift Mulit-blade Stone Cutting Machine HLDQ-1600  is suitable  for cutting stone blocks, such as  granite, marble.

Main Features

1)  Full sealed four-cylinder guider rail is used for rising and falling which makes the whole structure more stable, reducing wear and keeping themachine in the best working status for long time.

2)  Electric automatic slice separating improves the precision of the products, reduce labour intensity and improves the efficiency.


聯係我們,獲取完整方案!
Contact us to obtain the complete solution!





Hot Tags: hualong 5 axis cnc stone cutting machine, China, manufacturers, suppliers, factory, price, for sale, Granite Tile Polishing Machine, 5 Axis CNC Stone Saw, Double Blade Granite Quarry Machinery, Multi Balde Stone Cutting Machine, Automatic Stone Bridge Saw, CNC Sawjet
www.69韩国日本機械,數控五軸橋切機,四軸橋切機,4+1橋切,5+1橋切,三軸橋切機,紅外線橋切機,石材切機,石材加工廠設備,石材拋光機,石材拋光設備,石材加工中心,台麵加工中心,水刀,水刀切割機,礦山開采設備,礦山圓盤鋸,圓盤雙刀鋸,礦山機,礦山鋸。



名稱 Name 單位/Unit HLDQ-1600/6 HLDQ-1600/10
HLDQ-1600/16
HLDQ-1600/12
鋸片直徑 Btade diameter
mm
Φ1600,Φ940
Φ1600,Φ940
Φ1600,Φ940
Φ1200
鋸片數量 Number of blades
pc

6(3-Φ1600,3-Φ940)

6(3-Φ1600,3-Φ940)
6(3-Φ1600,3-Φ940)
12(Φ1200)
升降行程 Blade lifting stroke
mm
1000 1000 1000
1000
最大切割尺寸 Max.cutting size mm
3500x1300x950 3500x1300x960 3500x1300x950 3500x1300x950
行程電機功率 Power of stroke motor kw
2.2 2.2 2.2 2.2
升降電機功率 Power of lifting motor kw
22.2 2.2 2.2 2.2
主電機功率 Power of main motor
kw
37 45 55 55
耗水量
Water consumption L/min 37 42 42 42
總功率
Gross power kw 41.4 49.4 59.4 59.4
外形尺寸
Dimensions(L x W x H) mm 8500x4000x5500 8500x4000x5500 8500x4000x5500 8500x4000x5500
整機重量 Gross weight kg 6000 7800 8500 8500

溫馨提示:如果想了解更多細節,規格、標準、價格和解決方案,請聯係我們。
